Product Description

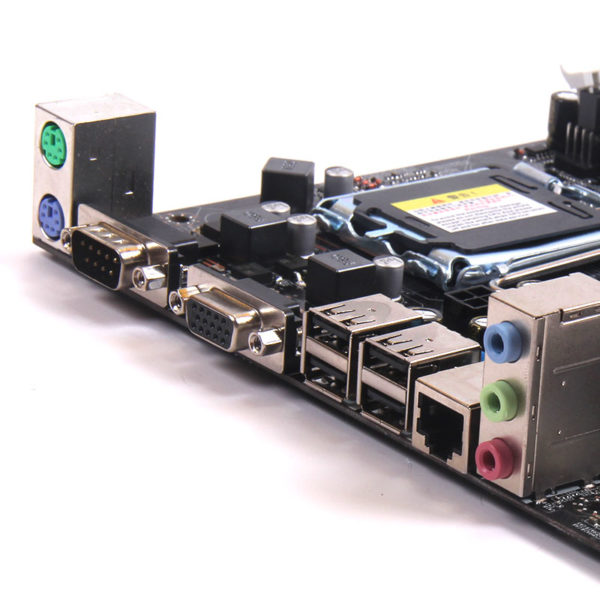

Model: ET-1302
| Specifiations | |
| CPU | : Supports LGA 775 CPU |
| : Supports FSB 800/1066/1333 MHz CPU | |
| Chipset | : Intel82G41 + 82801GB |
| : Supports GMAX4500 graphics | |
| Memory | : 2*240-pin DDRIII SDRAM slots |
| : Memory up tp 8 GB | |
| : Supports dual-channel DDRIII 800 MHz/1066 MHz memory | |
| BIOS | : AMI BIOS |
| I/O interface | : 1 X PS/2 keyboard port |
| : 1 X PS/2 mouse port | |
| : 1 X COM port | |
| : 1 X VGA port | |
| : 4 X USB 2.0, compatible with USB 1.1 | |
| : 1 X RJ45 port | |
| : 1 X 3-in-1 Audio port ( Line In / Line Out / Mic In | |
| Onboard interface | : 1 X24-pin ATX power connector |
| : 1 X 4-pin ATX power connector | |
| : 2 X USB connectors, can support 4*USB 2.0 | |
| : 1 X F_AUDIO connector | |
| : 1 X F_PANEL connetor | |
| : 1 X SPEAKER connector | |
| : 2 X FAN connectors | |
| : 4 X Serial ATA connection port | |
| : 1 X 40-pin IDE port | |
| Integrated sound | : with 6-channel HD Audio Codec onboard |
| : provides front audio interface; provides front stereo mic interface | |
| Integrated LAN | : with 10/100Mbps LAN onboard |
| Expansion slot | : 1 X PCI Express x 16 slot |
| : 1 X PCI slot, conformed to PCI v2.3 specification | |
| Dimensin | : Micro-ATX architecture ( 17*21cm ) |
